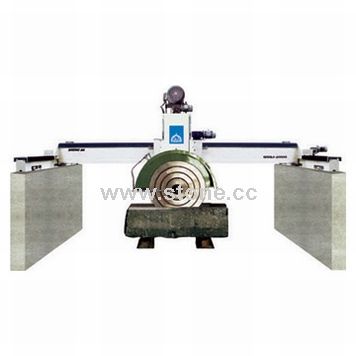

Block Cutting Machine (QSQJ-2000)

• Place of Origin:

   China

• Type:

  Quarrying and Earthmoving Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1282467

• Place of Origin:

  China
• TECHNICAL PARAMETER

  Max. Cutting length Mm: 3500
  Max. Cutting width  Mm: 2000
  Max. Cutting heightMm: 850
  Max blade diameter  Mm: 2000
  Max. No. Of blade  No: 6
  Main motor powerKw: 37
  Overall dimensions(LxWxH)Mm  : 7300x3800x6300
  Approximate weight  kg: 10000

  This machine is for cutting granite and marble blocks in small size, the combination of multiblade with different dimension increases working efficiency, it adopts two-slider frame structure, driven synchronizely by double screw, high stiffness and stability.
